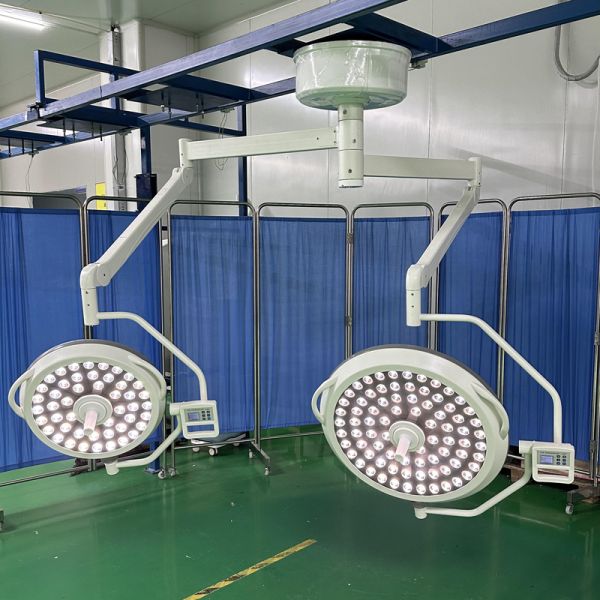

Shadowless Operating Room Light With Osram LEDs, Manual Focus System, And Intelligent Shadow Compensation
Operating Room Light Advantages
1. True Shadow-Reduced Illumination with Intelligent Compensation
-
Intelligent Shadow Compensation Technology actively optimizes light from multiple LED modules to fill in shadows created by hands, instruments, or heads. This results in a consistently deep and uniform surgical cavity, minimizing visual obstructions and enhancing procedural safety.
-
Benefit: Surgeons gain a stable, clear view throughout the operation, reducing eye strain and improving accuracy during delicate maneuvers.
2. Premium Osram LED Engine for Reliability & Color Fidelity
-
Powered by high-performance Osram LED chips, known for their exceptional longevity, stable output, and superior color quality.
-
Delivers bright, cool, and uniform light with a high Color Rendering Index (CRI >95), ensuring true-to-life tissue differentiation and accurate visualization of vasculature and organs.
-
Benefit: Trusted component quality translates to reliable performance, reduced maintenance costs, and outstanding visual accuracy for critical decision-making.
3. Manual Focus System for Instant, Tactile Control
-
The intuitive Manual Focus System allows surgeons and staff to physically adjust the light spot size and beam intensity with immediate, precise feedback.
-
Enables rapid transitions between wide-field illumination for open surgeries and a focused, intense spot for deep-cavity or minimally invasive procedures.
-
Benefit: Provides direct, hassle-free control without relying on complex menus or digital interfaces, ensuring efficiency and simplicity in the fast-paced OR environment.
4. Cool, Efficient, & Ergonomic Design
-
Advanced heat dissipation design ensures the light head remains cool throughout long procedures, increasing patient safety and staff comfort.
-
The fully adjustable, balanced arm system allows for easy positioning and stays securely in place.
-
Benefit: A reliable, user-centric tool that supports long-duration surgeries without overheating risks and adapts effortlessly to any surgical setup.
Why Choose This Operating Room Light ?
This is more than an operating light; it's a precision visualization tool. By integrating high-intensity 160,000 lux output with a broadly adjustable color spectrum (3000K-6700K), it addresses the two most critical visual needs in modern surgery: clarity and contrast. It empowers surgical teams to perform at their highest level, supporting improved outcomes, safety, and efficiency in the operating room.
Operating Room Light Parameter
| Illuminance | 0000-160000 adjustable /40000-120000 adjustable |
| Color temperature: | 3000K-6700K adjustable |
| Color reduction index(Ra) | 90 |
| Illuminance depth | ≥1100mm/≥1100mm |
| Focusing method | Manual |
| The light bulb life expectancy | ≥100000h |
| Input Power | 100W/100W |
| Total LED bulb quantity | 128pcs(1W/pc*80pcs+1W/pc*48pcs) |
| Lowest height of installation | 2800mm |
Operating Room Light Description
1.Color temperature adjustment: the lamp holder is installed with different color temperature LED lamp beads, in the case of maintaining the color rendering index 90, the color temperature is adjusted between 3000K and 6700K; Thus achieving the best tissue resolution.
2.Bright and uniform lighting: the beam emitted by the LED light source is focused through a specially designed high-performance lens in the surgical area to meet the optical domain required for surgical lighting; The maximum illumination can reach 160.000LUX. The brightness of the LED is stepless controlled by digital means, and the illumination of each lamp head can be adjusted separately; .
3.Extremely low failure rate: each LED module contains 6-10 LED lamp beads, each module contains an independent electronic control system, the lamp head has a very low failure rate, the failure of a single LED will not affect the function of the lamp head.
4.Convenient focal length adjustment: with manual focusing system can achieve bright and uniform shadowless lighting effect, in the spot adjustment range can reach the maximum illuminance, not only to meet the requirements of large open surgery large spot high illuminance requirements, but also to meet the requirements of small spot high illuminance required by conventional window surgery;
5.Low heat production: The greater advantage of LED is that it produces less heat, because it almost does not emit infrared or ultraviolet light.
6.Average service life: LED lights are superior to traditional halogen or gas lamps in that they have a long service life. Conventional lights usually have to be replaced after 600 to 5,000 hours of use, and the average life of LED lights is 100,000 hours.
7.Energy saving: Using 1W lamp beads using 3D software to simulate the spatial position, with the least arrangement of lamp beads to complete the established performance indicators;
8.In line with the laminar flow turbulence design, so that the purified laminar flow air can easily move with the streamline of the surgical lamp, and so that the lamp can maintain a better working temperature, effectively ensure the service life of the LED lamp beads.
9.Luxury spring arm, durable, light and flexible. The lamp holder can be easily rotated 360° and accurately positioned in the ideal position. The lamp arm has a wide range of activity and can be applied to the operating room under different building conditions.
10.Detachable handle jacket, can be disinfected at 135℃, can operate the focus, position and Angle of the lamp body;
Operating Room Light Application:
Surgical lights are used in operating rooms and examination rooms to provide bright, clear, and shadow-free illumination of a patient's body during a medical procedure.
